Magnetic Simulation for Optimized Magnetic Circuit & Assembly Design
We use advanced magnetic simulation and magnetic circuit analysis to validate magnet assembly designs before production. By simulating magnetic field distribution, flux density, and structural behavior, we optimize performance, reduce development risk, and minimize costly trial-and-error during magnetic assembly manufacturing.
Simulation

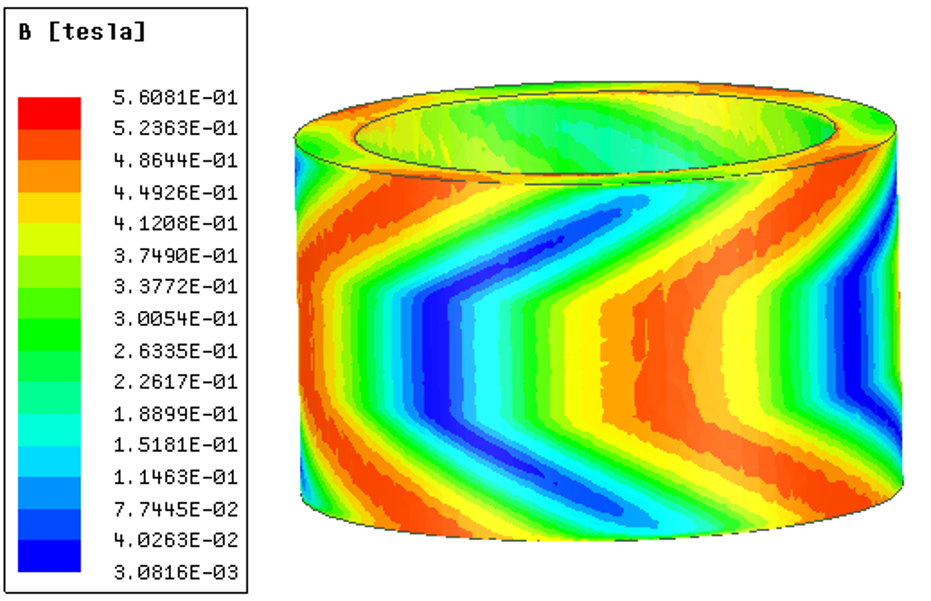

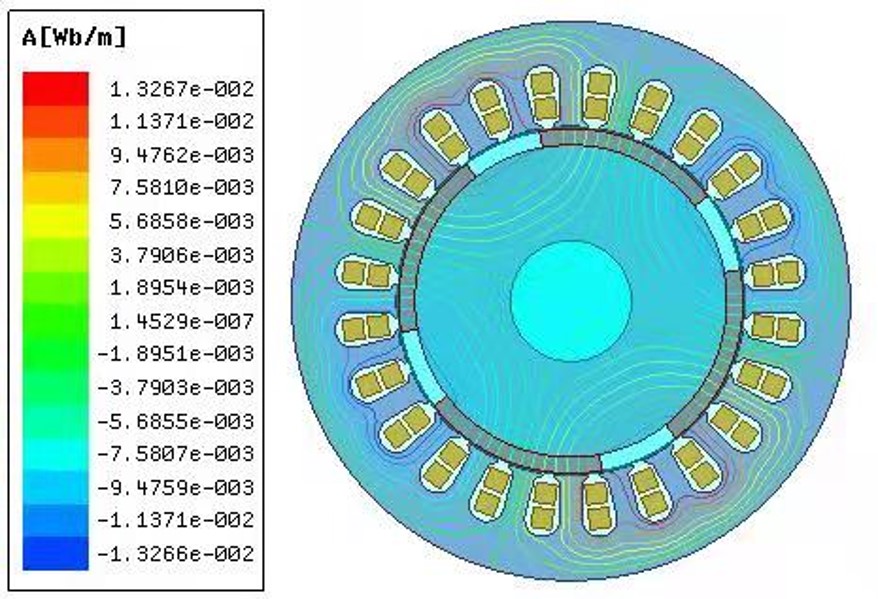

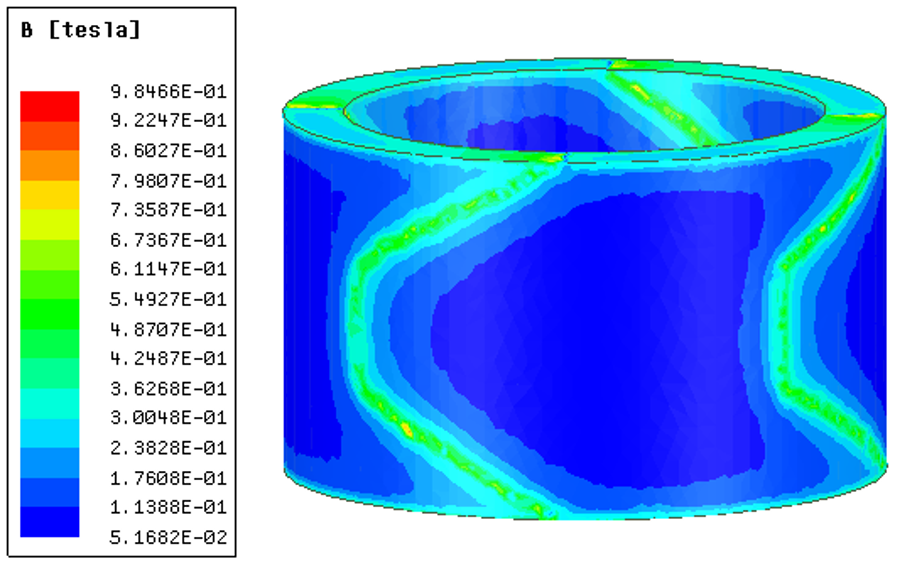

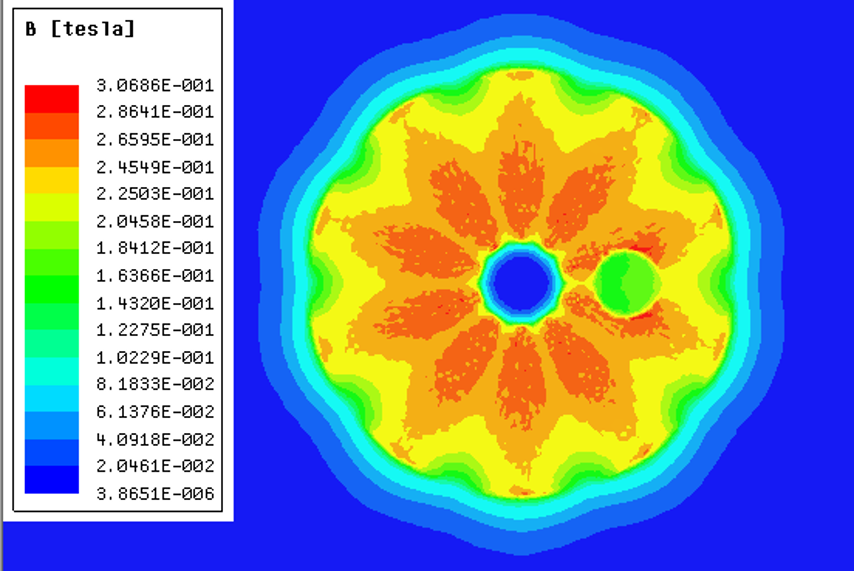

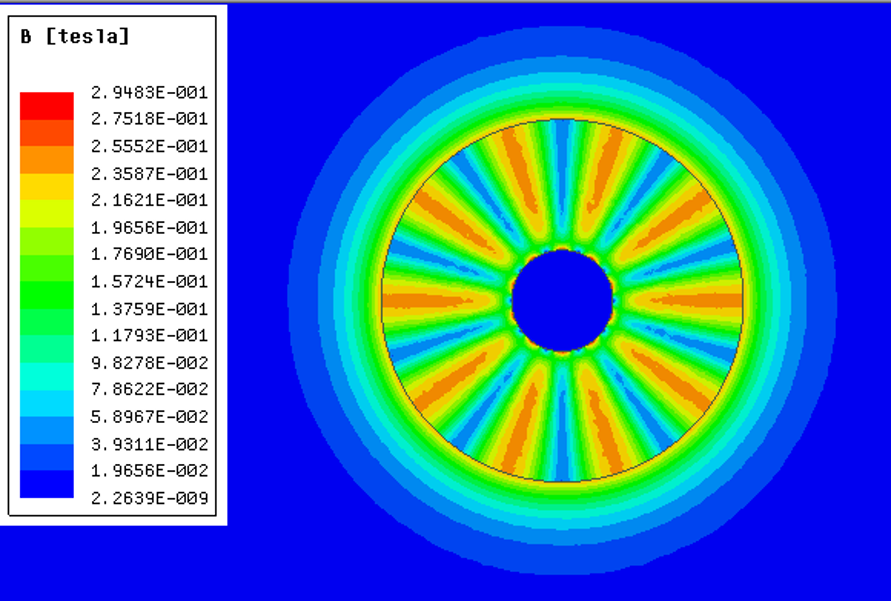

We can adopt simulation methods to match the corresponding appropriate materials according to the customer’s drawings and requirements, and provide simulation technical documents and reports, mainly including magnetic field simulation of magnets, motor characteristic simulation, etc.

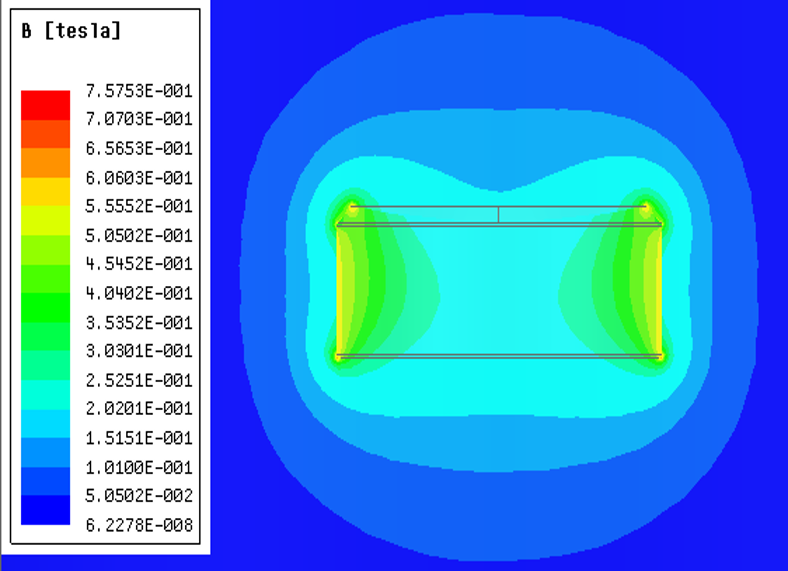

Magnetic Field Line Cloud Map
01
Magnet Simulation Case 1
| Dimension | Magnetization Mode | Material | Simulated Surface Gauss |
| OD22.3*ID12.6*H15 | Outer Diameter With 6 Poles | NB80 | 3200 |
Magnetic Line Of Force

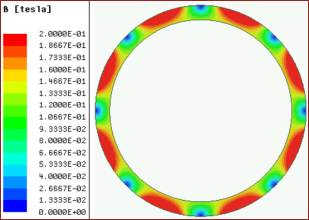

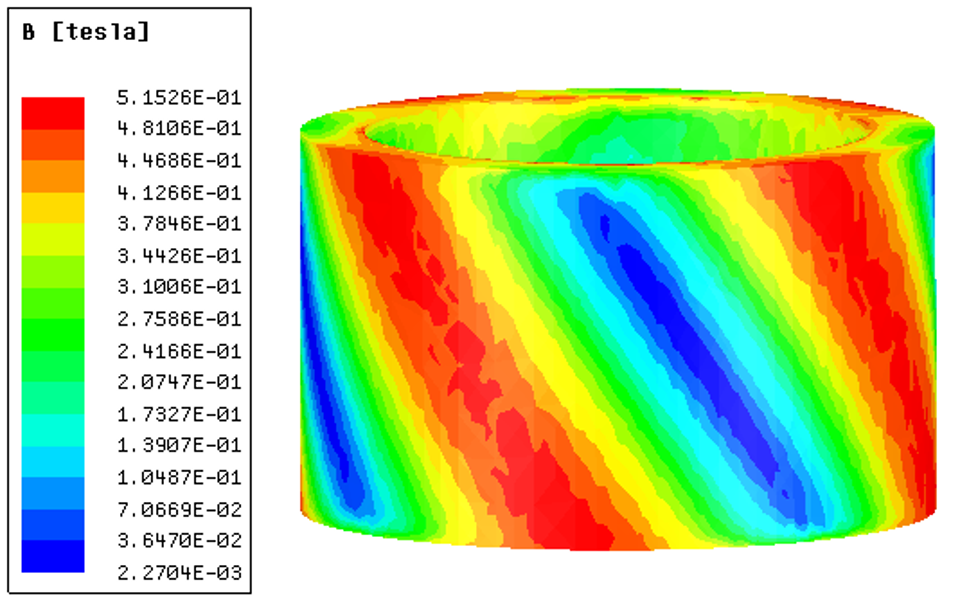

Flux Density

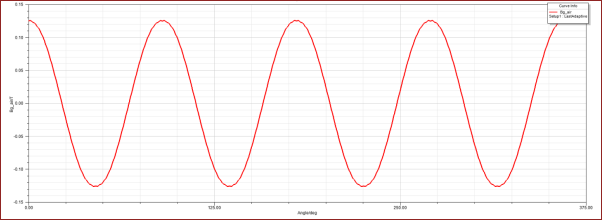

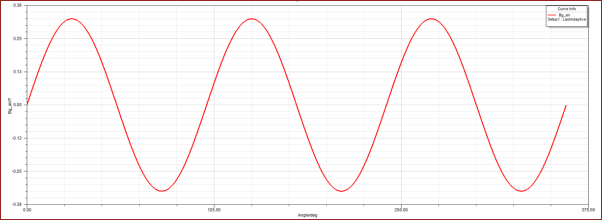

Surface Magnetic Waveform
02
Magnet Simulation Case 2
| Dimension | Magnetization Mode | Material | Simulated Surface Gauss |
| OD88*ID76*H35 | Inter Diameter With 6 Poles | FA19 | 1250 |
Magnetic Line Of Force

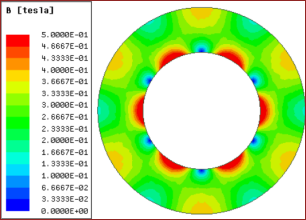

Flux Density
Surface Magnetic Waveform
