Why does an N52 magnet rated at 14,000 gauss measure so much lower on your bench?
The magnet is probably not the problem. You may be comparing two different measurements. A material’s remanence, a surface reading, and the field inside your assembly are related, but they aren‘t interchangeable.
Once that distinction is clear, choosing a grade becomes easier. Let’s look at what the numbers mean, where N35, N42, and N52 fit, and how to specify a magnet that actually works in your project.
What Does Neodymium Magnet Gauss Actually Measure?
Gauss measures magnetic flux density, usually written as B. Tesla is the SI unit for the same quantity. The conversion is simple: 1 tesla = 10,000 gauss, and 1 millitesla = 10 gauss. This follows the NIST unit conversion.
When you read a specification, separate these three values:
- Remanence, Br: the residual magnetic flux density at H = 0 on the material’s demagnetization curve after saturation.
- Surface field: the flux density measured near a defined point on the magnet’s surface.
- Working field: the flux density at the sensor, air gap, or other location that matters in your assembly.
A Br value of 14,500 gauss doesn’t promise a 14,500-gauss surface reading. And a surface reading doesn’t tell you the field several millimeters away. Always ask which value a supplier is quoting.
N35 vs N42 vs N52: Neodymium Magnet Gauss by Grade
The number in an N-grade refers to a maximum energy-product family, expressed in MGOe. It is not a direct gauss rating. Higher numbers generally indicate greater magnetic energy density within a comparable grade family.
These room-temperature Br ranges follow our permanent magnet grades reference. They describe sintered NdFeB material, not guaranteed surface readings.
| Grade | Illustrative Br range | When to evaluate it |
|---|---|---|
| N35 | 11,700–12,200 G | The required output fits comfortably within the available magnet size. |
| N42 | 12,800–13,200 G | You need more output without immediately moving to a higher-energy grade. |
| N52 | 14,300–14,800 G | Space is tight and extra energy density may help. |
Supplier specifications vary. Use the approved datasheet for your actual material. Also, N52 isn’t “52 percent stronger” than N35. Grade numbers describe energy product, while field and holding force depend on the complete design.
Why the Same Magnet Grade Can Give Different Gauss Readings
Geometry changes the field. A thin disc and a thicker cylinder can produce different readings even when their material grade matches. Rings, arcs, and blocks distribute flux differently too. Magnetization direction adds another variable.
Distance matters just as much. A small change in probe position can change the measured field near a pole. Nearby steel and other magnets can redirect the flux. That’s why I wouldn’t accept “3,000 gauss” as a complete drawing requirement. Specify the location, gap, field component, and assembly condition. Otherwise, two people can test the same part and report different results.
How to Choose a Neodymium Magnet Grade for Your Application
Start with the job, not the highest grade available. A magnet for a latch has different success criteria from one for a rotary sensor or motor rotor.
- For holding applications, check working pull force: Gauss isn’t holding force. Contact area, steel thickness, surface condition, and air gap all influence the result. Paint or a protective layer can change the working gap. Test pull force in the intended assembly, including the actual loading direction. An N35 magnet with suitable geometry may meet your target without an N52 upgrade.
- For sensors, match the required field window: A sensor needs the right field, not simply more field. Check its minimum signal, maximum input, and sensing axis across the full movement and tolerance range. Excess field can exceed the usable input range.
- For motor rotors, evaluate the magnetic circuit: Consider air-gap flux, temperature, opposing fields, and rotor retention together. A higher-energy grade can help a compact design, but only when the circuit uses it effectively.

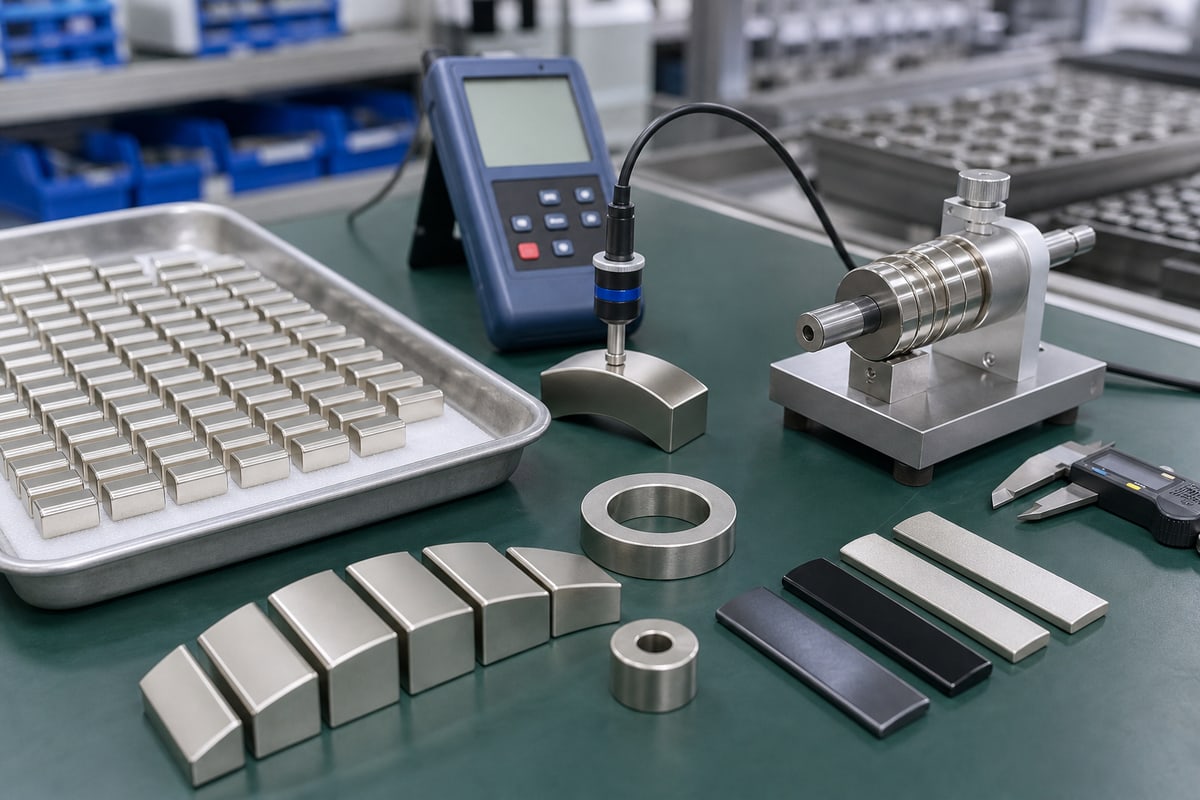

How to Measure Neodymium Magnet Gauss Consistently
Use a calibrated gaussmeter with a suitable Hall probe. Follow the instrument’s zeroing procedure and choose a range that covers the expected field. Then keep the test conditions repeatable:
- Locate the probe’s active sensing area, not just its outer tip.
- Fix the measurement position, distance, and probe orientation.
- Define whether you need one field component or a vector measurement.
- Control temperature and nearby magnetic or steel components.
- Record the part identity, instrument, setup, and acceptance limits.

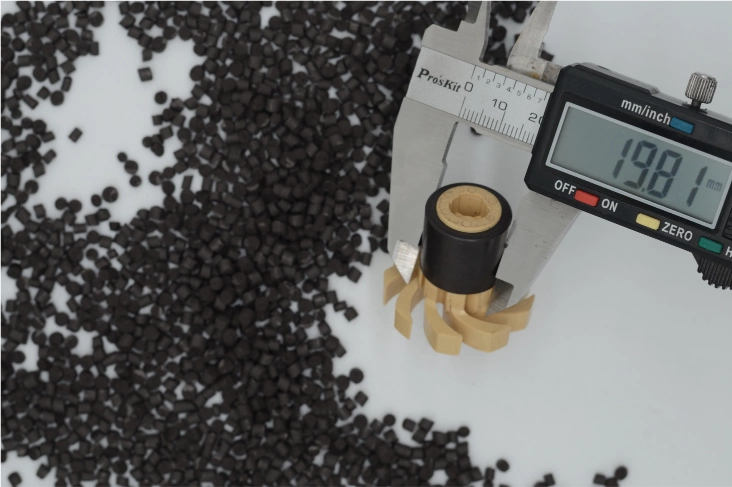

For multipole parts, measure the relevant track or waveform rather than one convenient peak. Our quality-control capabilities can support discussions about the appropriate inspection plan. A surface reading alone isn’t a definitive grade certificate; material-property verification requires suitable magnetic testing.
Choose the Grade That Meets Your Working Requirement

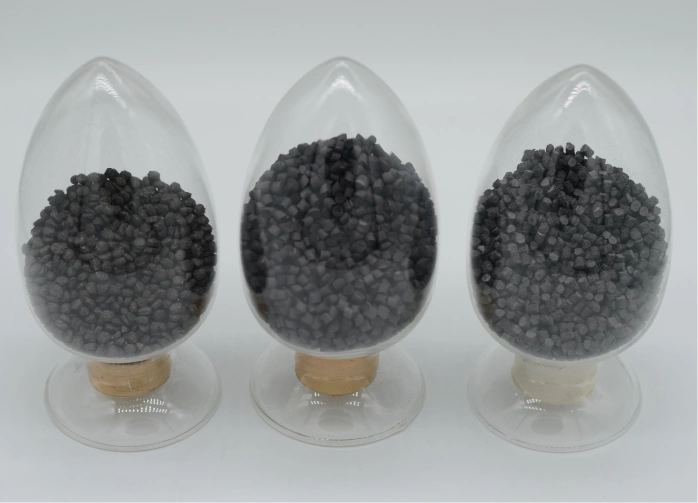

The useful question isn’t “Which magnet has the most gauss?” It’s “Which design delivers the field or force I need under real conditions?” If you have a project in mind, contact us. We can review material, geometry, magnetization, and inspection together. Chase works with sintered, injection-molded, and compression-molded magnets, so we can recommend the process that fits your design rather than the other way around.
FAQs
How many gauss does a neodymium magnet have?
There is no single value. Material remanence depends on grade. Surface and working-field readings also depend on geometry, magnetization, distance, temperature, and nearby components. Identify the measurement before comparing numbers.
How many gauss is an N52 magnet?
The N52 material range in our reference is approximately 14,300–14,800 gauss for Br. That is not its guaranteed surface field. Use the actual supplier datasheet and a defined measurement setup for your part.
Is N52 stronger than N35?
N52 has higher magnetic energy density and generally higher Br. With matched geometry, magnetization, and suitable temperature, it usually produces a higher field. That doesn’t make it the best grade for every application.
Does higher gauss mean more pull force?
Not automatically. Gauss describes flux density at a measurement location. Pull force depends on the magnetic circuit, contact area, gap, steel, and loading direction. One gauss reading cannot establish working holding force.
How do you measure a neodymium magnet’s gauss?
Use a calibrated gaussmeter and a compatible Hall probe. Specify the probe’s active-area position, orientation, distance, temperature, and surrounding components. Keep those conditions fixed when comparing samples.
